Pruning trees

H series brushcutters

DSH 250 D / DSH 2500 D - Shaft extension application

H series brushcutters

DSH 250 D / DSH 2500 D - Pruner application

H series brushcutters

DSH 2500 D / DSH 2500 D - Engine unit

• Power/Displacement
  1.2 HP - 0.9 kW/25.4 cm³
• Weight of engine unit
  4.9 kg
• Grip
  single
• Tube diameter
  26 mm
• Fuel tank capacity
  0.64 L
• Weight (commercial feature)
  Weight of engine unit

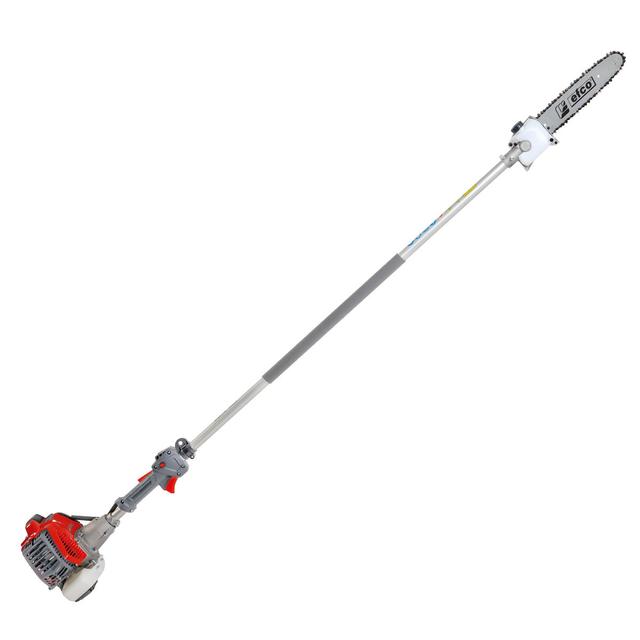

H series pruners

PTH 2500

• Power/Displacement
  1.2 HP - 0.9 kW/25.4 cm³
• Bar length (nose)
  25 cm, (sprocket), 10''
• Dry weight without bar and chain
  5.4 kg
• Chain (pitch x gauge)
  3/8''x.050''
• Adjustement of pruning head
  fixed implement
• Overall length of machine
  2.05 m
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  96.0/110.7 dB(A)
• Lh/rh vibration level
  1.4/1.4 m/s²

H series chainsaws

MTTH 2400

• Power/Displacement
  1.2 HP - 0.9 kW/25.4 cm³
• Bar length (nose)
  25 cm, 10''
• Dry weight without bar and chain
  3.2 kg
• Chain (pitch x gauge)
  3/8" x .050" (sprocket)
• Oil Pump
  zero flow rate at idle speed, aluminium, adjustable
• Oil/fuel tank capacity
  0.16 L/0.20 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  96.7/108 dB(A)
• Lh/rh vibration level
  7.1/7.1 m/s²

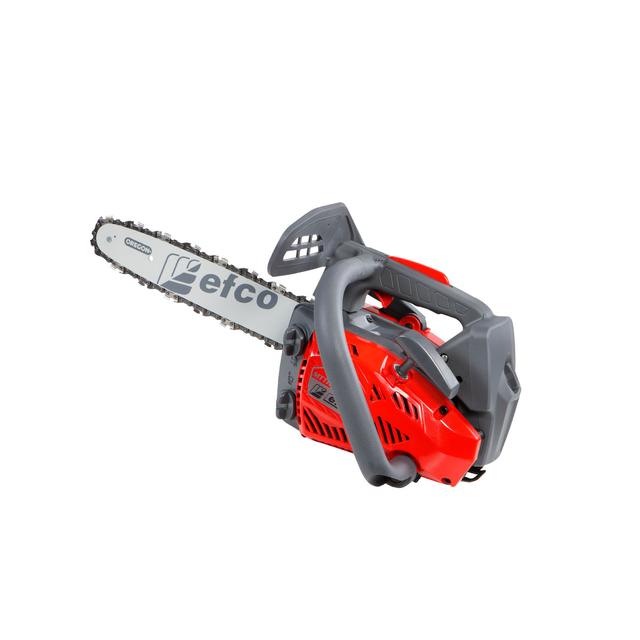

Pruning chainsaws

MTT 2500

• Power/Displacement
  1.3 HP - 1.0 kW/25.4 cm³
• Bar length (nose)
  25 cm, 10'', (sprocket/carving)
• Dry weight without bar and chain
  2.7 kg
• Chain (pitch x gauge)
  1/4''x.050'' (sprocket), 1/4''x.050'' (carving), 1/4" x .043" (sprocket)
• Oil Pump
  zero flow rate at idle speed, aluminium, automatic
• Oil/fuel tank capacity
  0.19 L/0.22 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  97.7/107.9 dB(A)
• Lh/rh vibration level
  4.3/5.2 m/s²

Pruning chainsaws

MTT 3600

• Power/Displacement
  2.0 HP - 1.5 kW/35.1 cm³
• Bar length (nose)
  (sprocket), 30-35 cm, 12''-14''
• Dry weight without bar and chain
  3.8 kg
• Chain (pitch x gauge)
  3/8" x .050" (sprocket)
• Oil Pump
  zero flow rate at idle speed, aluminium, adjustable
• Oil/fuel tank capacity
  0.23 L/0.28 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  103/115 dB(A)
• Lh/rh vibration level
  4.9/5.2 m/s²

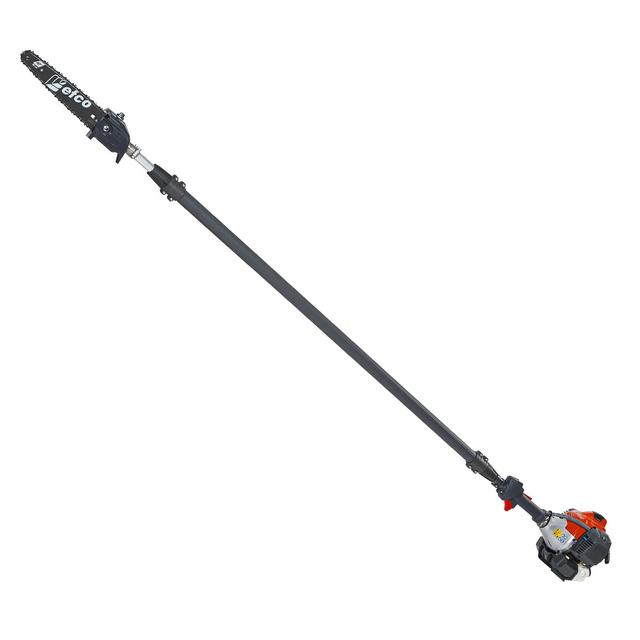

Telescopic pruners

PTX 2710

• Power/Displacement
  1.3 HP - 1.0 kW/27 cm³
• Bar length (nose)
  25 cm, 10'', (microlite sprocket)
• Dry weight without bar and chain
  7.9 kg
• Chain (pitch x gauge)
  3/8''x.043''
• Adjustement of pruning head
  from 0° to 90° (5 positions)
• Overall length of machine
  2.60/3.80 m
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  97/107.5 dB(A)
• Lh/rh vibration level
  4.2/5.9 m/s²
