56 V Battery-powered Products
PROFESSIONAL

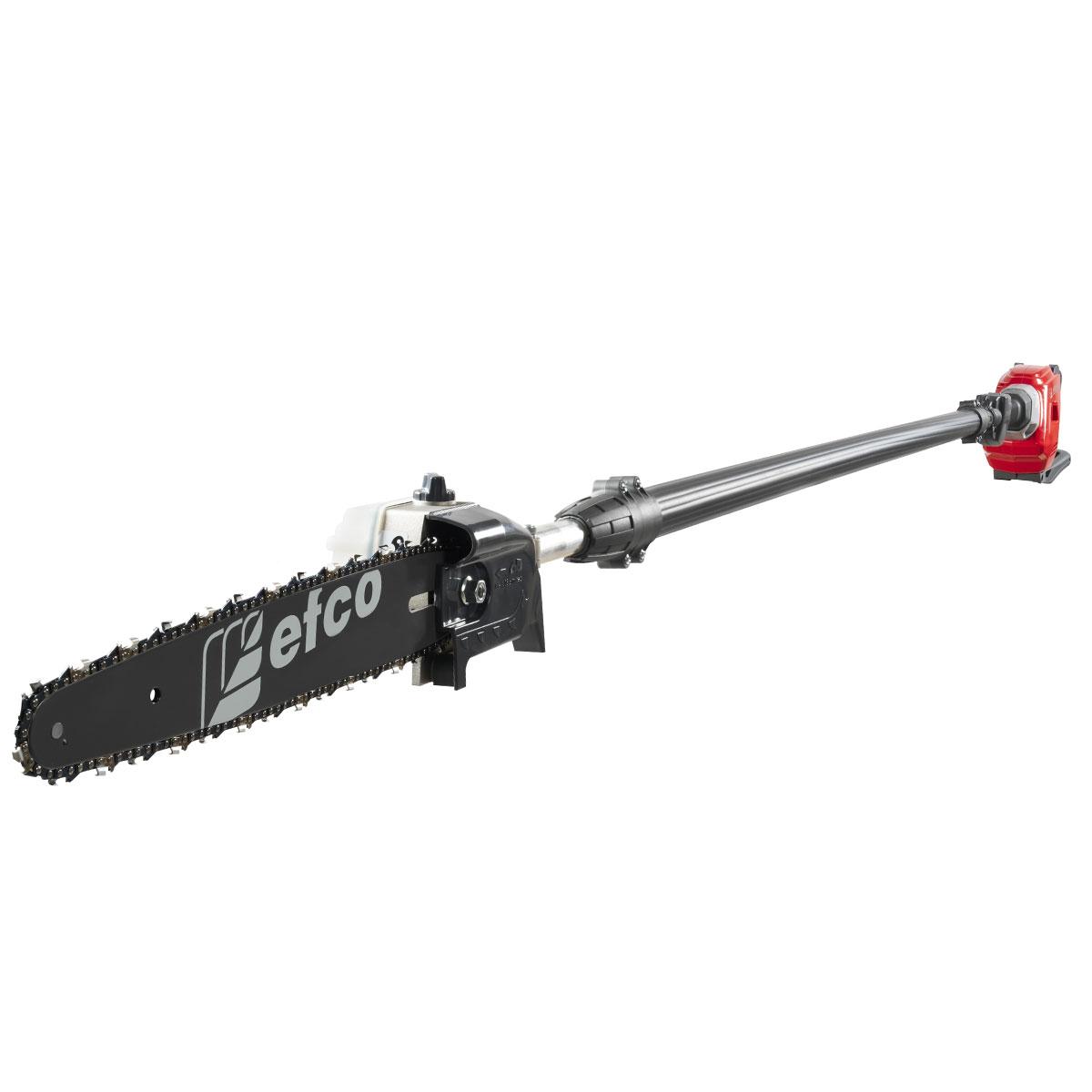

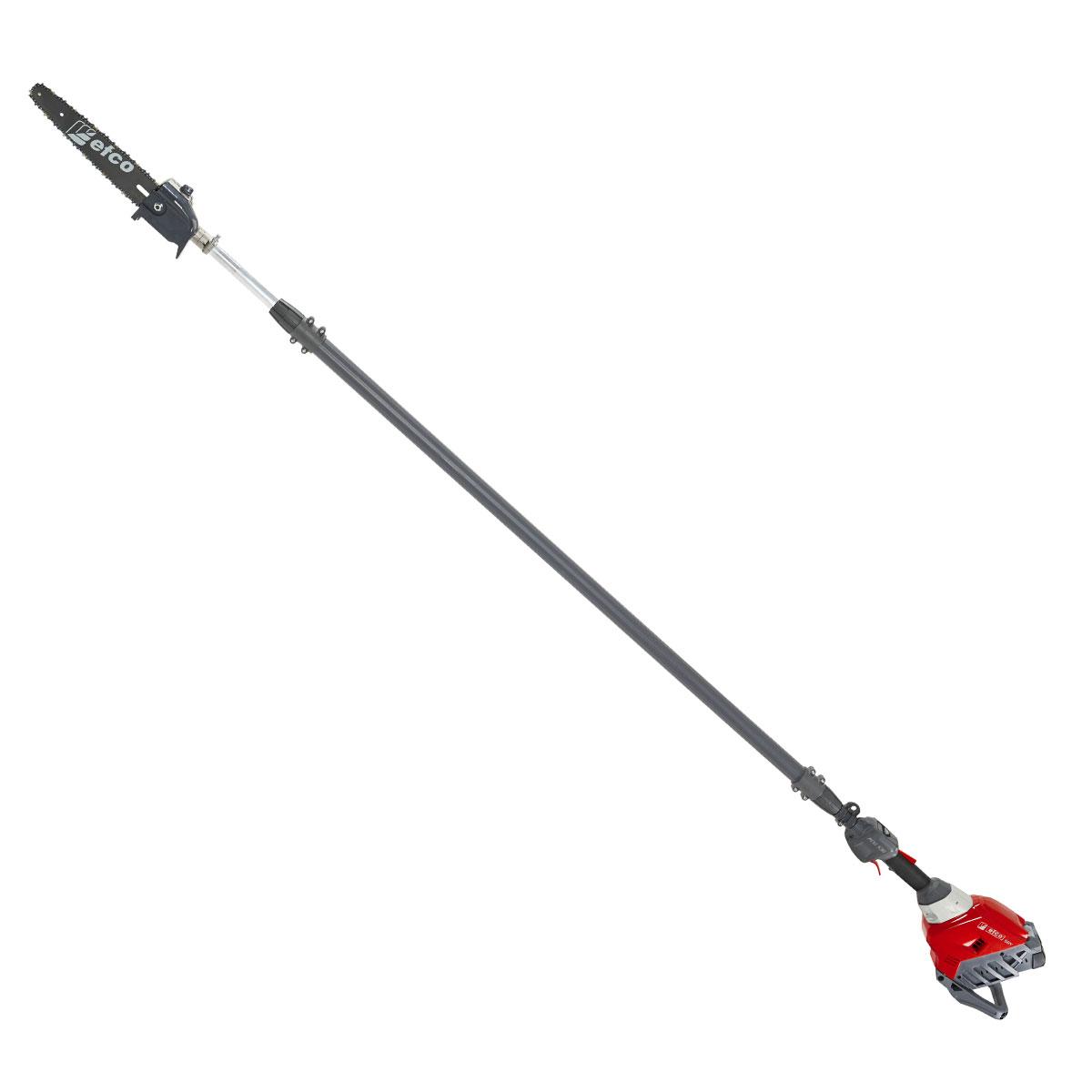

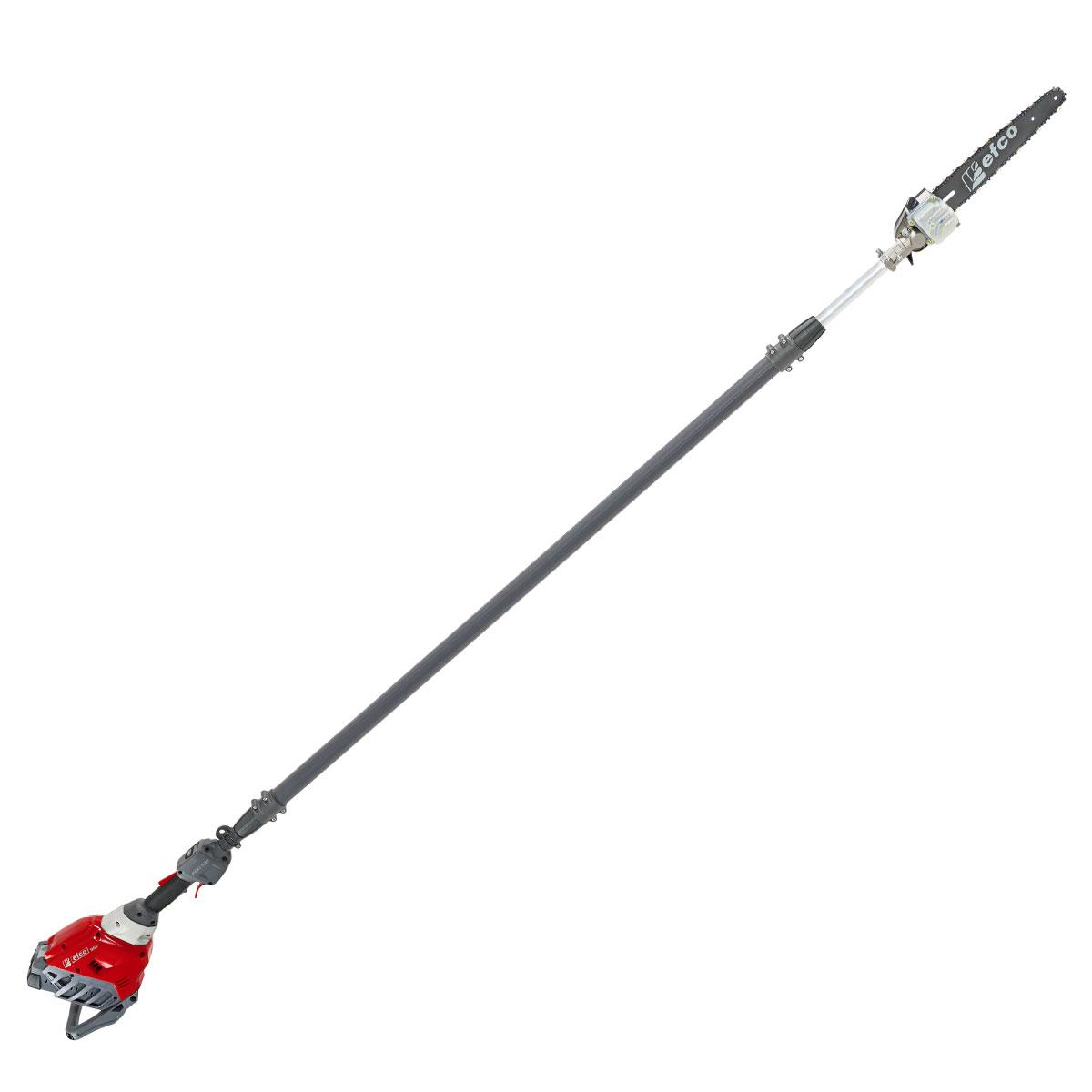

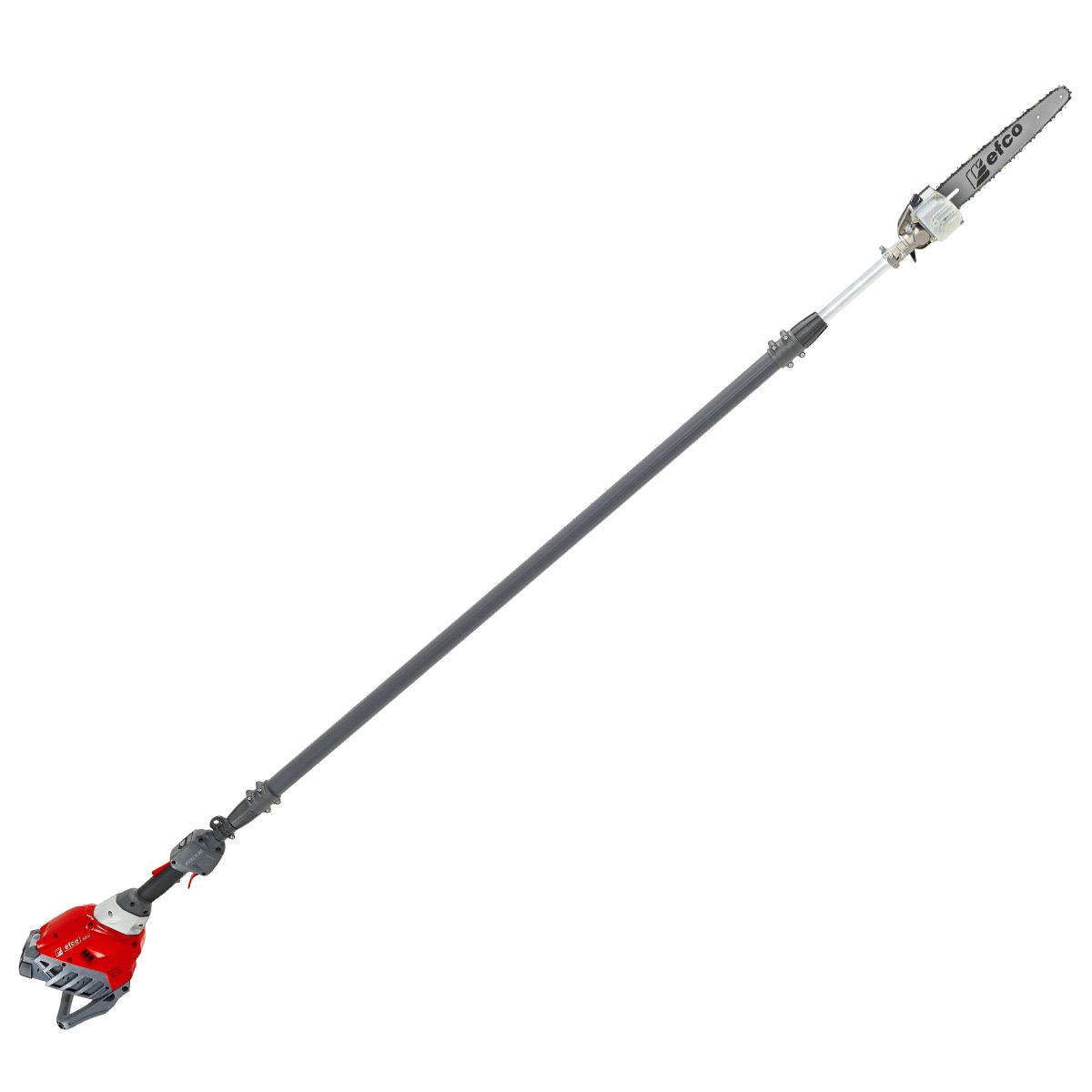

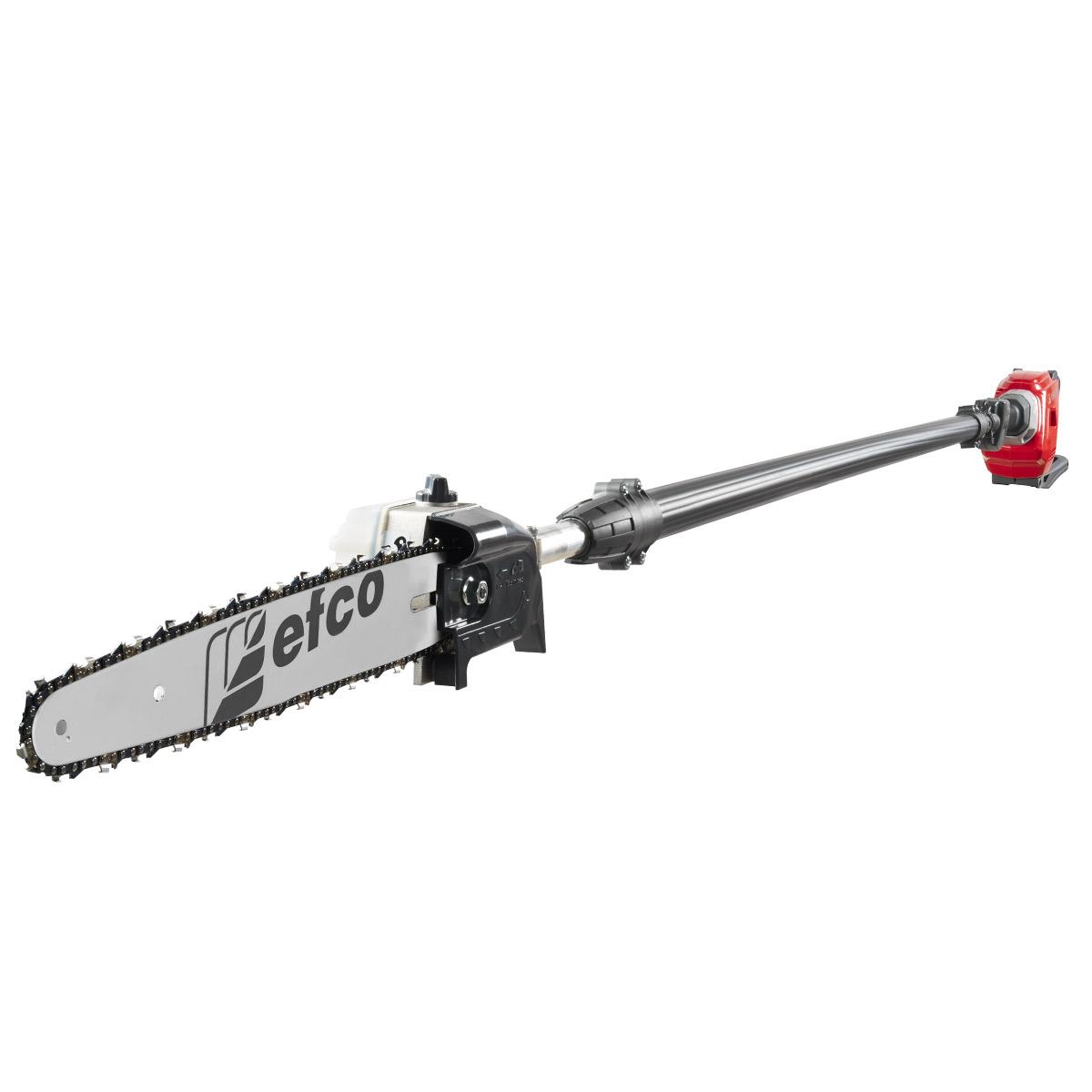

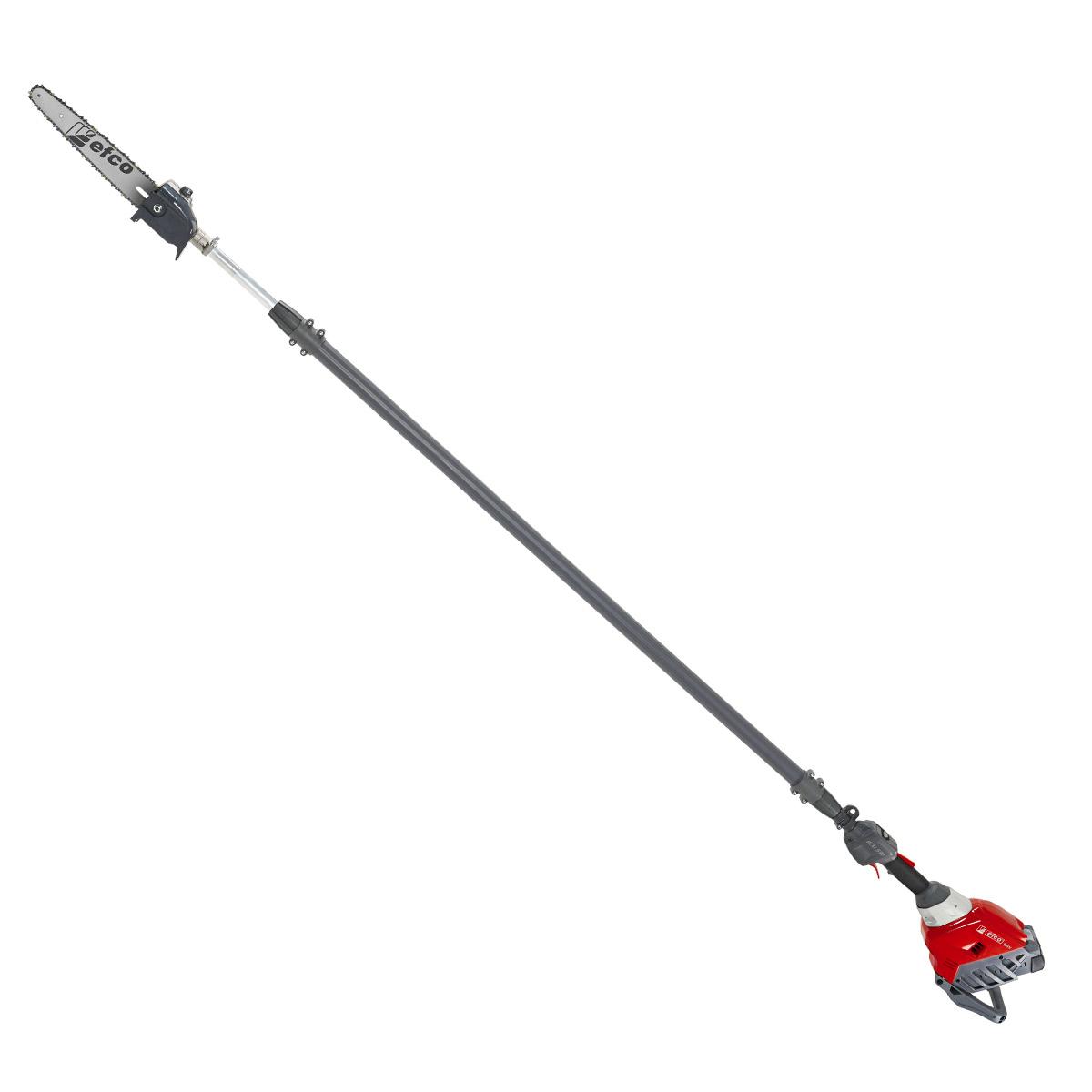

PTXi 530
PROFESSIONAL
- Bar length
- 12", 30 cm
- Chain (pitch x gauge)
- 1/4" x .043" (sprocket)
- Runtime up to
- 80 cuts (2.5 Ah) light use, 55 cuts (2.5 Ah) intensive use, 125 cuts (4 Ah) light use, 85 cuts (4 Ah) intensive use
- Maximum electrical power of the machine
- 1.5 HP/1.15 kW
- Mechanical power output
- 1.34 HP/1.0 kW
- Motor type
- Brushless
- Sound pressure/power level
- 87.7/97.05 dB(A)
- Voltage
- 56 V
- Lh/rh vibration level
- 5.2/3.6 m/s²
- Compatible batteries
- Bi 525, Bi 540
- Oil reservoir capacity
- 0.18 L
- Charging time with CRG 520
- 35’ (Bi 525 - 2.5 Ah), 45’ (Bi 540 - 4 Ah)
- Overall length of machine
- 2.65/3.85 m
- Cutting performance
- cut of wood section up to 10 cm diameter. Working time can be subject to variations according to working conditions and type of wood to be cut
- Dry weight without battery, bar and chain
- 6.2 kg
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
